2. BGMA Manual

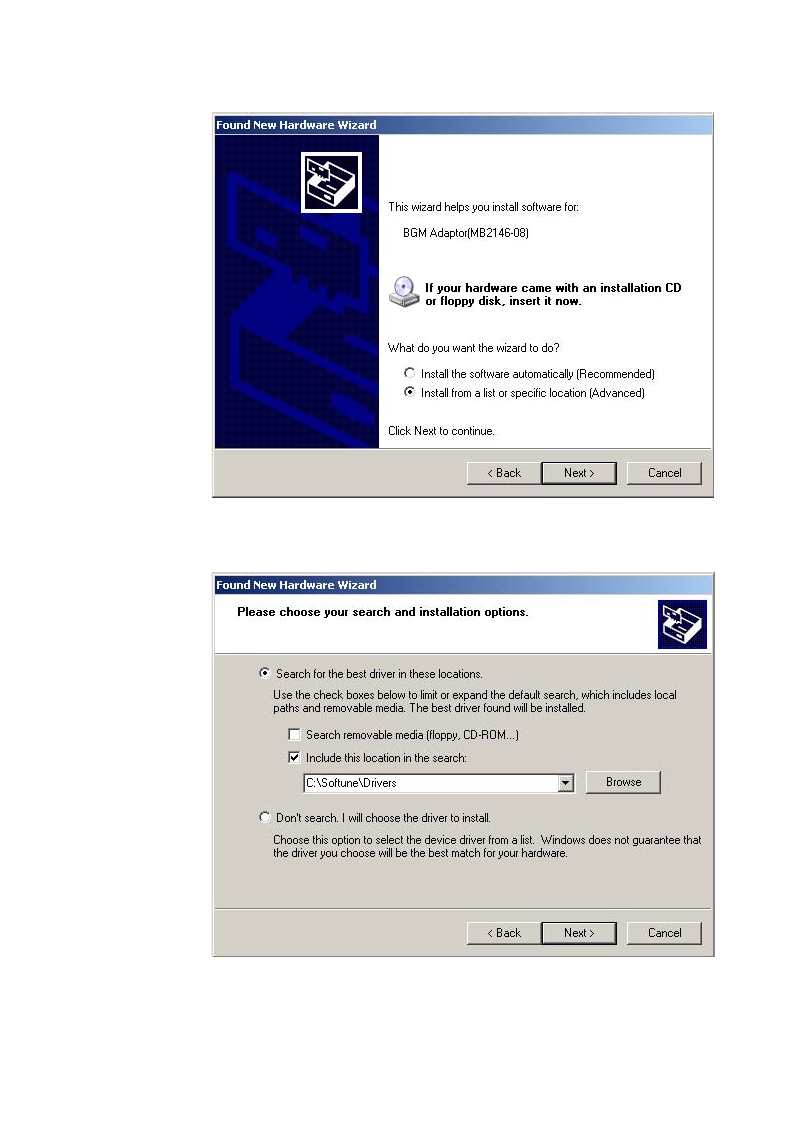

This chapter gives introduction how to setup BGMA.
2.1 BGMA Overview
Below is the close look of the BGMA. The Part Number of the MB95200 Series BGMA is MB2146-
08-E. It provides a debug platform for the MB95200 Series MCU in a small size (55.7mm (W) ×
127mm (D) × 30mm (H)).
Figure 2.1-1 BGMA overview
2.2 Function List
ID
1
2
3
4
Function description
Support MB95200 Series MCU
Break pointer
USB interface to PC/S OFTUNE
1-Line UART interface to the MB95200
Series MCU
Remarks
MCU MAX machine clock: 16.25 MHz
MCU power voltage: 2.4V* 1 * 2 to 5.5V* 1
256 software breakpoints
Compatible to USB protocol version 1.1
The Baud rate is 62,500 bps
5
Support the MCU flash programming for Provide high voltage for flash operation.
engineering development The program and read speed is about 800 B/S.
*1 : The value varies depending on the operating frequency, the machine clock or the analog guar-
anteed range.
*2 : The value is 2.88 V when the low-voltage detection reset is used.
3
